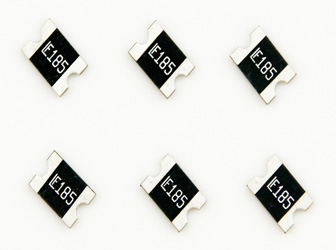

2920L185
Littelfuse力特2920L185符合RoHS標準，無鉛 對故障電流作出快速響應 高電壓 小尺寸 與高溫焊料兼容
| 型號 | Marking | Ihold(A) | Itrip(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rmin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2920L700/12 | LF700-12 | 7.00 | 14.00 | 12 | 50 | 2.00 | 35.00 | 2.00 | 0.003 | 0.018 |
 |
| 2920L600/12 | LF600 | 6.00 | 12.00 | 15 | 50 | 2.00 | 30.00 | 2.00 | 0.004 | 0.020 |
|
| 2920L500/16 | LF500-16 | 5.00 | 10.00 | 16 | 40 | 2.0 | 20.00 | 5.00 | 0.005 | 0.025 |
|
| 2920L400/15 | LF400 | 4.00 | 8.00 | 15 | 40 | 1.50 | 20.00 | 4.00 | 0.010 | 0.040 |
|
| 2920L330/24 | LF330 | 3.3 | 5.50 | 24 | 40 | 2.0 | 8.00 | 5.00 | 0.015 | 0.055 |
|
| 2920L300/15 | LF300-15 | 3.00 | 5.00 | 15 | 40 | 1.50 | 8.00 | 20.00 | 0.015 | 0.048 |
|
| 2920L300 | LF300 | 3.00 | 5.00 | 6 | 40 | 1.50 | 8.00 | 20.00 | 0.015 | 0.048 |
|
| 2920L260/24 | LF260-24 | 2.60 | 5.00 | 24 | 40 | 1.50 | 6.00 | 10.00 | 0.025 | 0.075 |
|
| 2920L260 | LF260 | 2.60 | 5.00 | 6 | 40 | 1.50 | 8.00 | 10.00 | 0.025 | 0.075 |
|
| 2920L250 | LF250 | 2.50 | 5.00 | 15 | 40 | 1.50 | 8.00 | 10.00 | 0.035 | 0.085 |
|
| 2920L200/24 | LF200-24 | 2.00 | 4.00 | 24 | 40 | 1.50 | 8.00 | 5.00 | 0.050 | 0.125 |
|
| 2920L200 | LF200 | 2.00 | 4.00 | 15 | 40 | 1.50 | 8.00 | 5.00 | 0.050 | 0.125 |
|
| 2920L185 | L185 | 1.85 | 3.70 | 33 | 40 | 1.50 | 8.00 | 2.50 | 0.050 | 0.150 |
|
| 2920L150 | LF150 | 1.50 | 3.00 | 33 | 40 | 1.50 | 8.00 | 2.00 | 0.080 | 0.230 |
|
| 2920L125 | LF125 | 1.25 | 2.50 | 15 | 40 | 1.50 | 8.00 | 2.00 | 0.070 | 0.250 |
|
| 2920L110/60 | LF110 | 1.10 | 2.20 | 60 | 20 | 2.00 | 8.00 | 0.50 | 0.120 | 0.410 |
|
| 2920L075/60 | LF075-60 | 0.75 | 1.50 | 60 | 10 | 1.50 | 8.00 | 0.30 | 0.300 | 0.950 |
|
| 2920L100 | LF100 | 1.10 | 1.20 | 33 | 40 | 1.50 | 8.00 | 0.50 | 0.120 | 0.410 |
|
| 2920L075 | LF075 | 0.75 | 1.50 | 30 | 40 | 1.50 | 8.00 | 0.30 | 0.350 | 1.000 |
|
| 2920L030 | LF030 | 0.30 | 0.60 | 60 | 10 | 1.50 | 1.50 | 3.00 | 1.200 | 4.800 |
|
| 2920L050 | LF050 | 0.50 | 1.00 | 60 | 10 | 1.50 | 2.50 | 4.00 | 0.350 | 1.400 |
|
