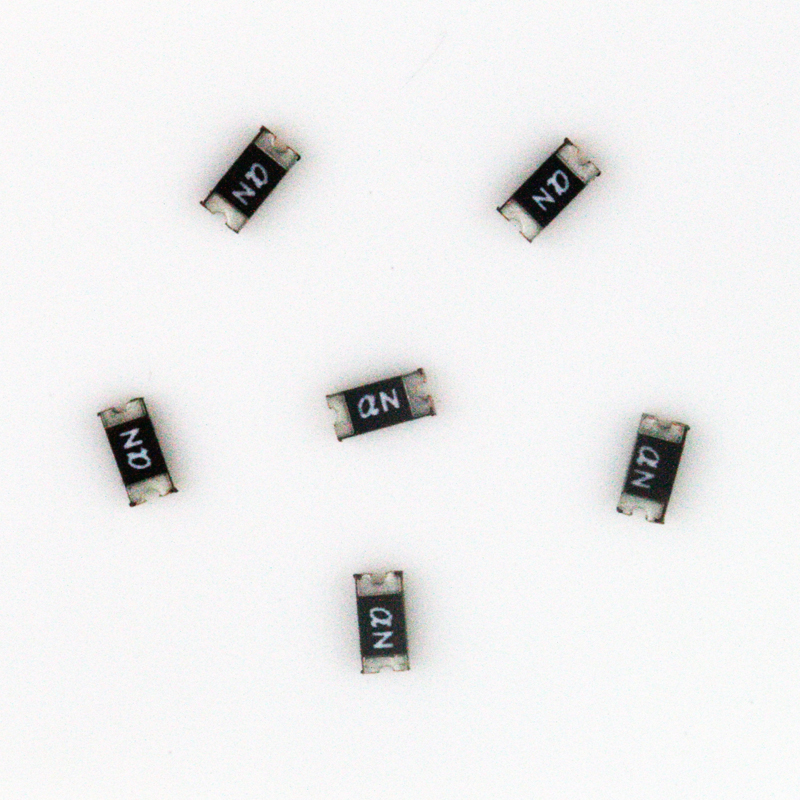

nSMD010
陸海nSMD010
| 型號(hào) | Marking | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| nSMD150 | αI | 1.50 | 3.00 | 6.0 | 100 | 0.8 | 8.0 | 1.00 | 0.040 | 0.130 |
 |
| nSMD100 | αH | 1.00 | 1.80 | 6.0 | 100 | 0.6 | 8.0 | 0.30 | 0.055 | 0.270 |
|
| nSMD075 | αG | 0.75 | 1.50 | 6.0 | 100 | 0.6 | 8.0 | 0.20 | 0.090 | 0.500 |
|
| nSMD050-13.2V | αF | 0.50 | 1.00 | 6.0 | 100 | 0.6 | 8.0 | 0.10 | 0.150 | 0.700 |
|
| nSMD050 | αF | 0.50 | 1.00 | 6.0 | 100 | 0.6 | 8.0 | 0.10 | 0.150 | 0.700 |
|
| nSMD035 | αB | 0.35 | 0.75 | 6.0 | 100 | 0.6 | 8.0 | 0.10 | 0.250 | 1.300 |
|
| nSMD025 | αA | 0.25 | 0.50 | 16.0 | 100 | 0.6 | 8.0 | 0.08 | 0.350 | 2.500 |
|
| nSMD010 | αN | 0.10 | 0.25 | 60.0 | 100 | 0.4 | 0.5 | 1.00 | 1.600 | 15.000 |
|
| nSMD005 | αZ | 0.05 | 0.15 | 60.0 | 100 | 0.4 | 0.3 | 1.50 | 3.600 | 50.000 |
|
