SMD2018-050
陸海SMD2018-050
| 型號(hào) | Marking | Ihold@25℃(A) | Itrip@25℃(A) | Vmax(V) | Imax(A) | Pdtyp.(W) | Trip current(A) | Trip time(S) | Rimin(Ω) | R1max(Ω) | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMD2018-133 | α133 | 1.60 | 2.80 | 8 | 40 | 0.8 | 8.0 | 1.00 | 0.040 | 0.099 |
 |
| SMD2018-200 | α200 | 2.00 | 4.00 | 10 | 100 | 1.1 | 8.0 | 2.40 | 0.030 | 0.100 |
|
| SMD2018-150 | α150 | 1.50 | 3.00 | 15 | 100 | 1.1 | 8.0 | 0.80 | 0.050 | 0.170 |
|
| SMD2018-100 | α100 | 1.10 | 2.20 | 15 | 100 | 1.1 | 8.0 | 0.40 | 0.060 | 0.360 |
|
| SMD2018-030 | α030 | 0.30 | 0.60 | 60 | 100 | 0.9 | 1.5 | 3.00 | 0.500 | 2.300 |
|

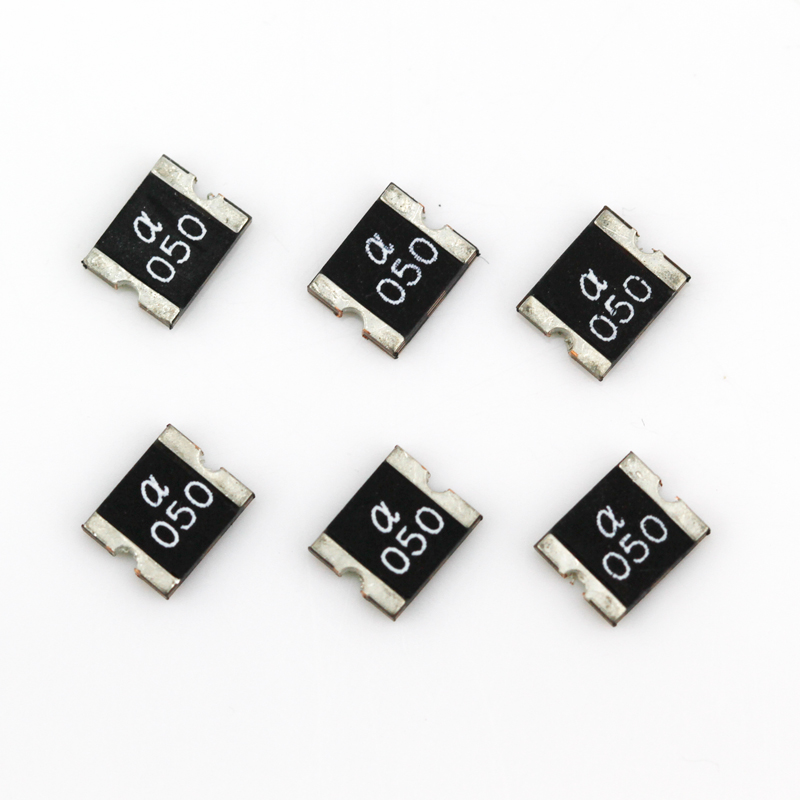

| SMD2018-050 | α050 | 0.55 | 1.20 | 60 | 100 | 1.0 | 2.5 | 3.00 | 0.200 | 1.000 |
|
